Products / Welding machines
Welding machines
Arc, spot and butt welding machines for fabrication shops and production lines, built to your duty and serviced by the people who made them. Seam welding machines are available on request.
Arc welding transformer
| Output current | 200 to 600 A range, e.g. 300 A and 400 A |
|---|---|
| Input supply | 415 V, 50 Hz, two or three phase |
| Cooling | Air cooled, copper winding |
| Control | Stepless current control with indicators |
| Duty cycle | 60% at rated current |
| Mounting | Trolley with wheels |

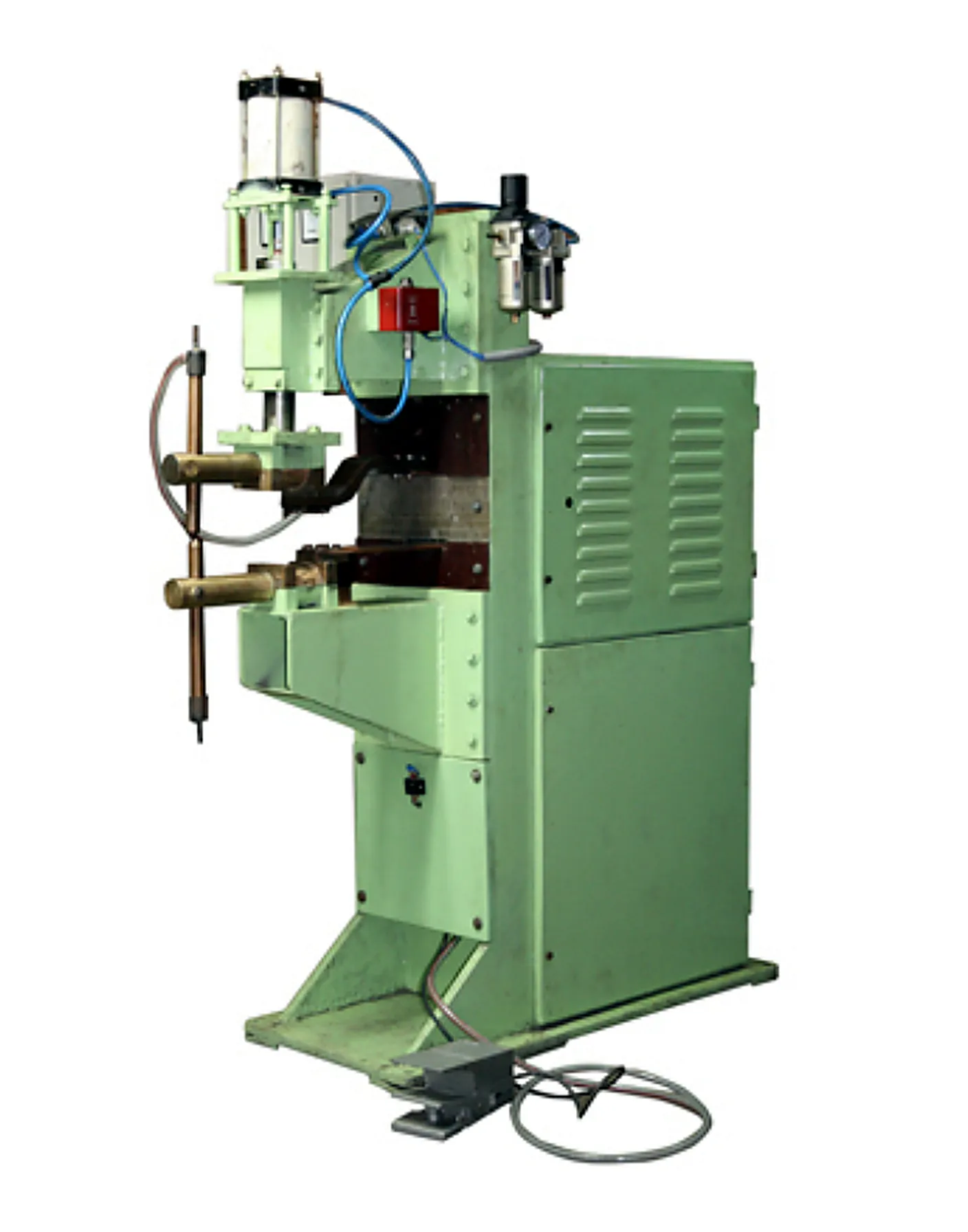

Pneumatic spot welding machine
| Rating | 10 to 50 kVA |
|---|---|
| Throat depth | 220 to 750 mm, to suit the job |
| Electrode force | 100 to 400 daN, set by air pressure |
| Air supply | 4 to 6 bar |
| Operation | Foot pedal, adjustable electrode stroke |
| Use | Sheet metal, spot and projection welding |

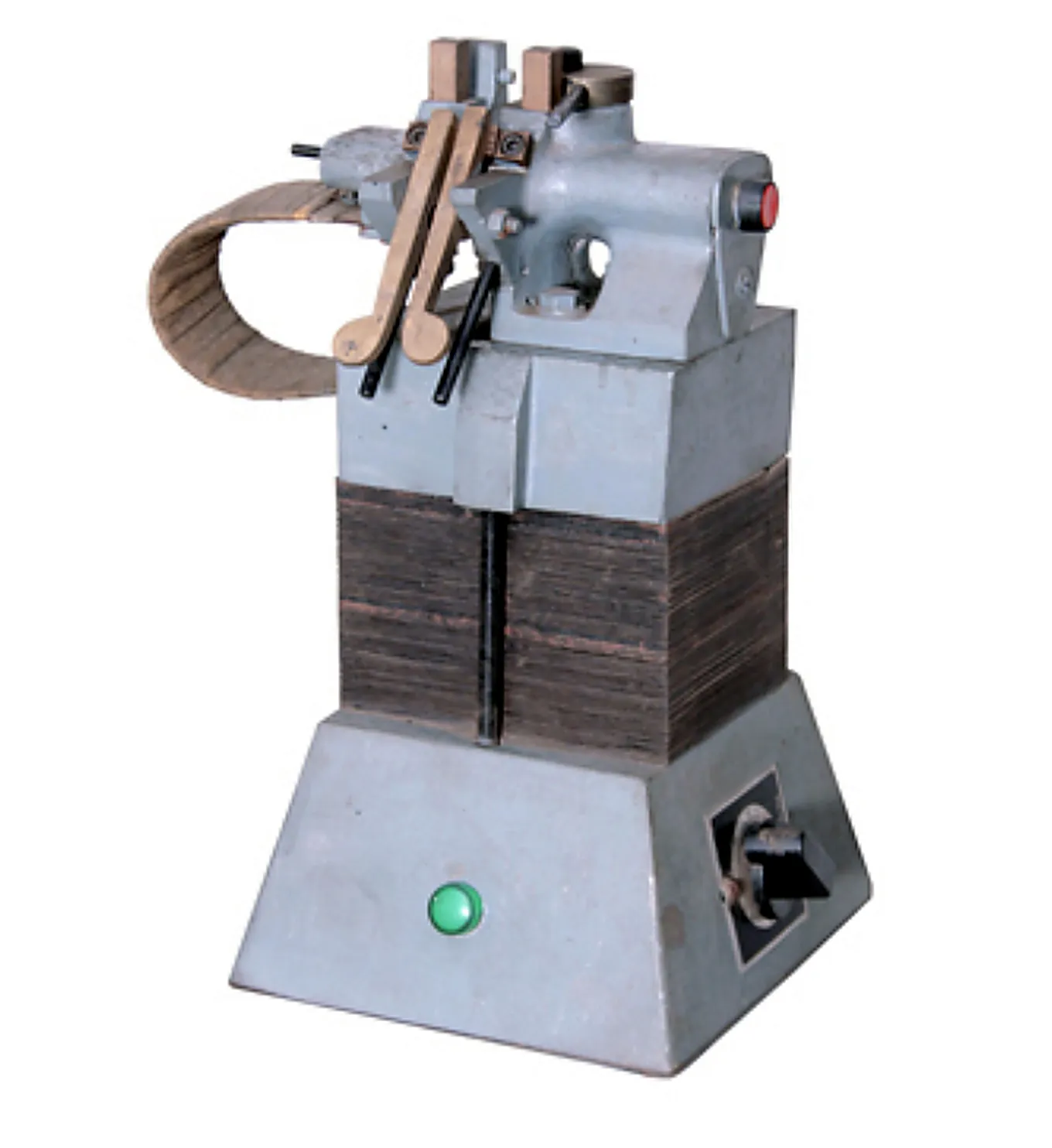

Butt welding machine
| Application | Joining strip and band |
|---|---|
| Type | Bench mounted |
| Ratings | On request |
Ratings shown are typical. Every machine is built to your requirement, so tell us your load and duty and we will quote accordingly.
